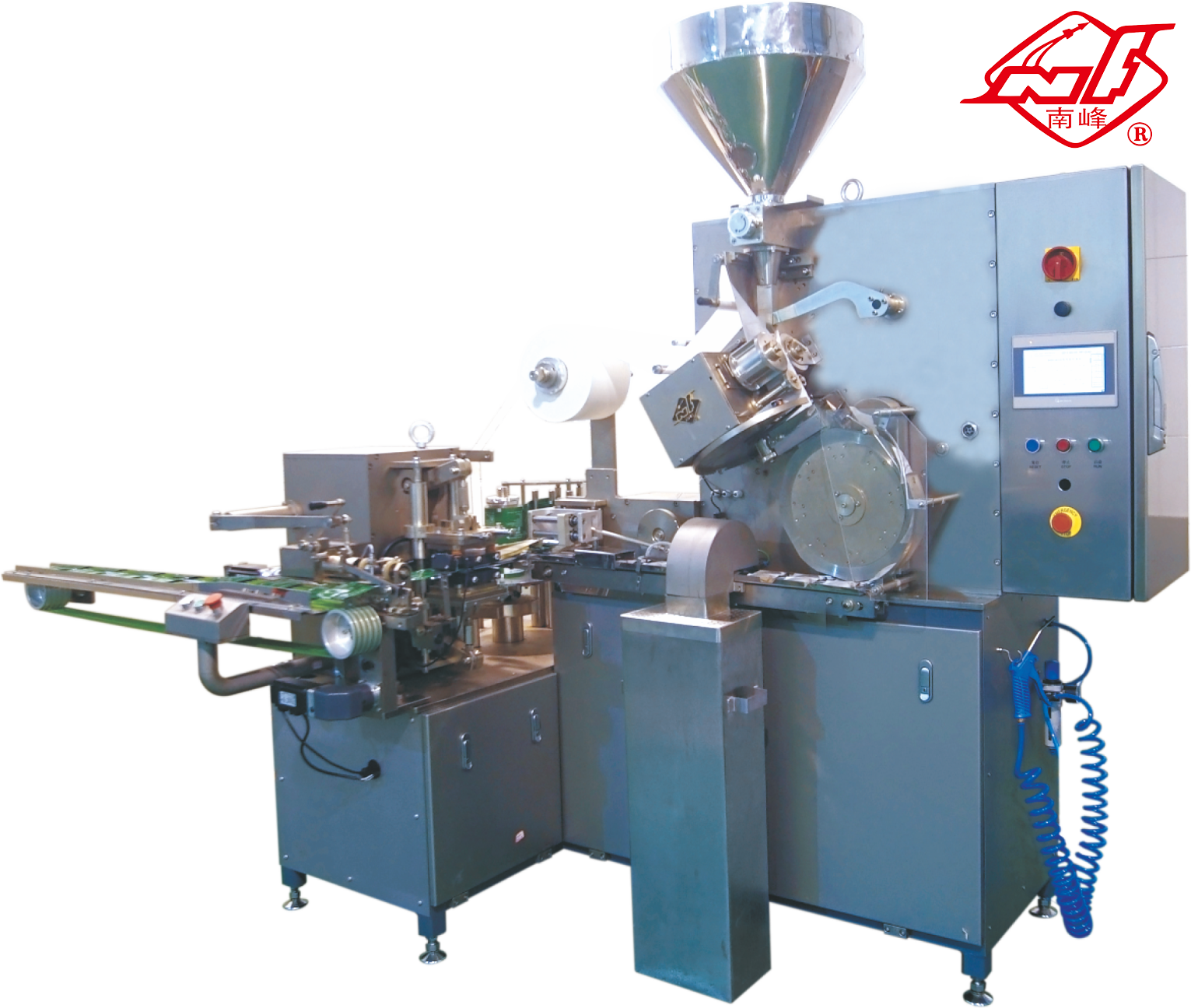

♦ Suitable for packaging of large dose materials (3-6g).
♦ A sensor monitor for jam teabag and envelope bag. Alarm stop when it detects a shortage of materials.
♦ With empty bag detection, automatic rejection function.
♦ With group count output function.
♦ The complete machine meets GMP and CE certification requirements.
♦ Provide Servo control for traction of envelope and ensures printing logo on a properly place.
♦ Photoelectricity automatically tracks the color point, and the brand positioning is accurate.
| Max.Capacity | 100±5 bags/min |
| Max.Dosage | 20 cm³ |

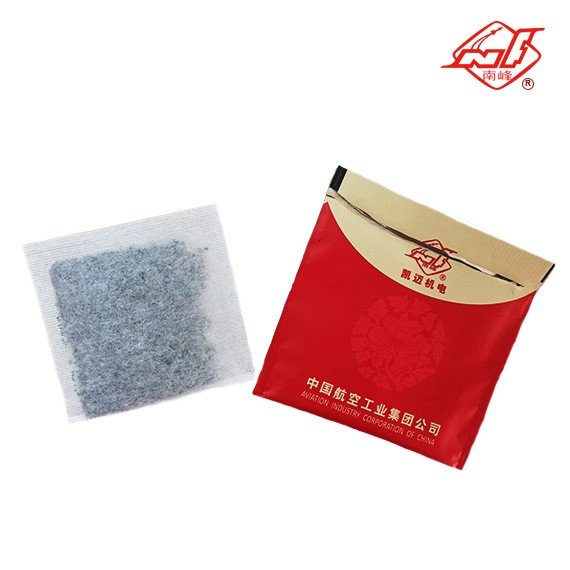

| Size Of Teabag(L×W) | 75 mm×75 mm |

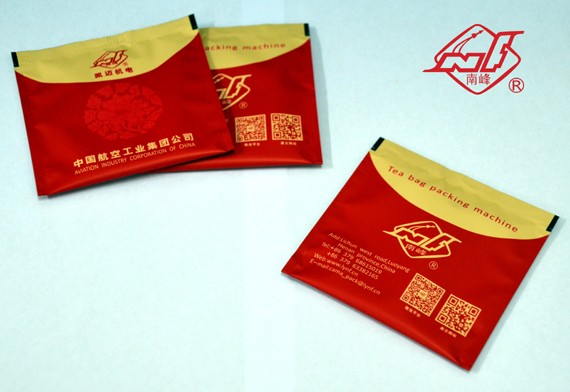

| Size Of Outer Bag(L×W) | 95 mm×95 mm |
| Width Of Filter Paper | 140mm |
| Air Pressure | 0.6 MPa |
| Air Consumption | 300L/min (with pneumatic vacuum feeder) 100L/min (without pneumatic vacuum feeder) |
| Power Supply | AC 380/220V |
| Total Power | 3 KW |
| Overall dimension(LxWxH) | 2800mm×1310mm×2205mm(standard) |
| Net weight | 1410kg |
| Gross weight | 1660kg |
| Carton dimension(LxWxH) | 2140mm×1410mm×1890mm |
| Options | 1) Vacuum feeding system 2) Date printing device 3) Safety gurad 4) Vibration feeder 5) Cartoner |
Heat sealing filter paper : Single side heat-sealing ,16.5-21g/㎡ ,width:125mm .
Various heat sealable laminated materials : Plastic / Foil / P.E, Paper / P.E, Paper / Foil / P.E, Plastic / P.E.
Cotton thread : The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.
Filter paper : 4010bags/kg
Envelope paper :800bags/kg
Note : The consumption is collected from untransparent OPP20/Pearl OPP 35 film.Other materials will be different.Counted according to the number of bags.
