Model DXDD11 Tea bag packing machine

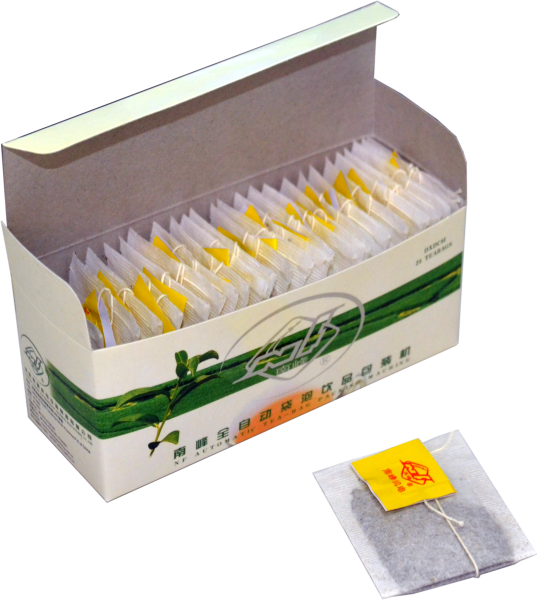

This automatic teabag packing machine can vary the quantity of teabags to be packed in an independent envelope.Our product can pack non-viscidity granule materials,CTC black tea,green broken tea,herbal mix granular formulations in various industry.It is controlled by PLC.Touch screen display.Operating easily.


We're here to help : Easy ways to get the answers you need.
Inquiry Now Related Products

Characteristics

♦ Patent for heat sealable tag system (No glue).

♦ Provide servo control for traction of envelope.

♦ High performance of sealing structure, Air tightness well, the bags are prepared in a continuous process from a roll of heat sealable hermetic material. After placing into each bag the programmed amount of teabags, they are sealed and cut for delivery.

♦ A sensing system that follows color mark automatically and ensures printing logo on a properly place.

♦ A sensor monitor for jam teabag. Alarm stop when it detects a shortage of materials.

♦ Stainless steel body of forming device, installing and removing within short time.

♦ Various heat sealable laminated materials (Plastic / P.E, Plastic / Foil / P.E).

Technical data

Capacity

110±5bags/min

Max.Dosage

6 cm³

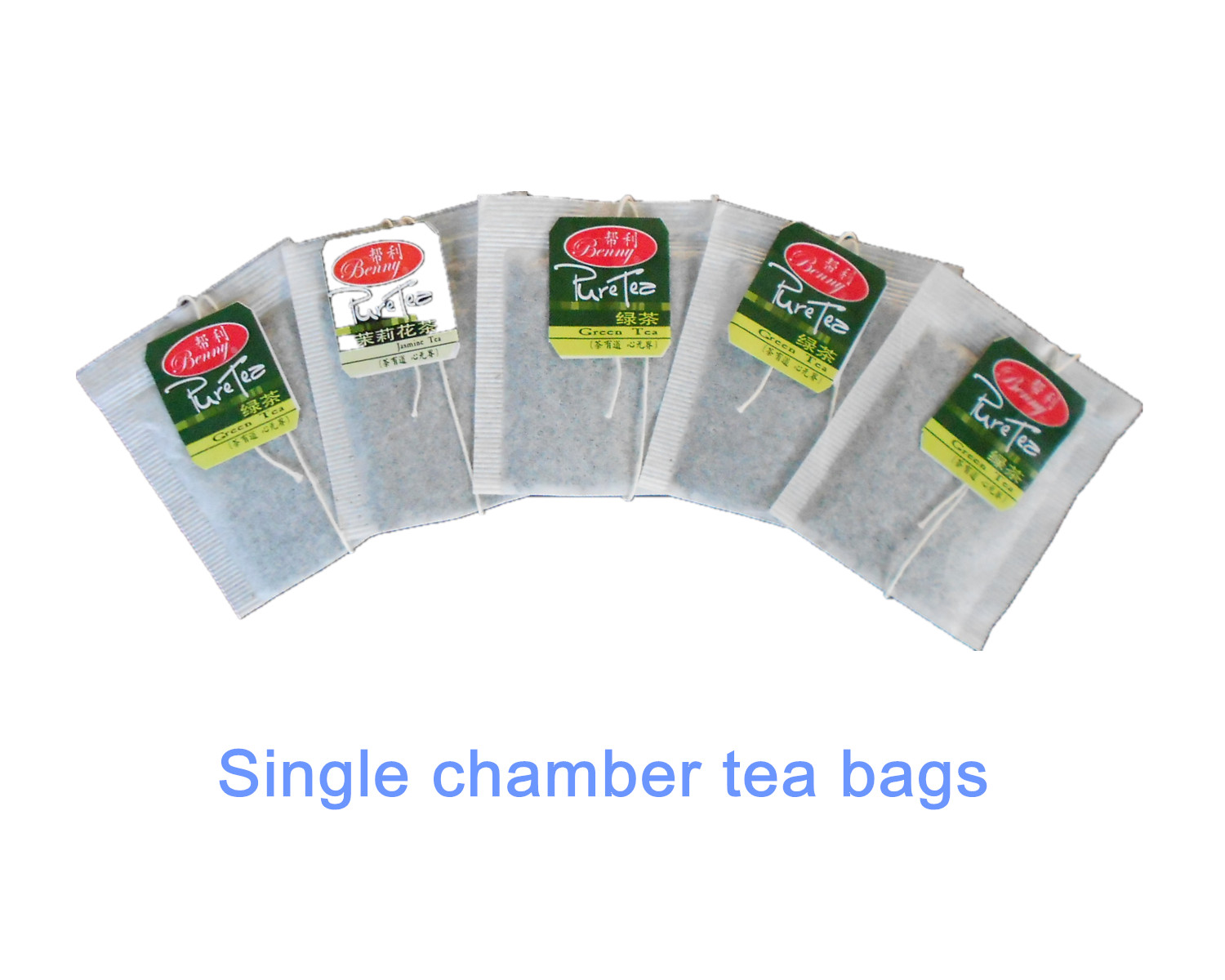

Size of tea bag (L×W)

62.5mm×50 mm

Size of envelope (L×W)

100mm×130mm (Length Variable only) Contains 3 teabags~5 teabags per envelope (Customer request)

Width of filter paper

125mm

Tag dimensions

28mm×24mm

Thread length

210mm

Envelope materials

Various materials ( Plastic / Foil / P.E, Paper / P.E)

Voltage

AC  380V/220V

Total power

2.0 KW

Air pressure

0.4~0.6MPa

Air consumption

65L/min

Overall dimension

1.400m ×0.905m ×2.475m

Carton dimensions

1.700m×1.100m ×2.200m

Net weight

910kg

Gross weight

1200kg

Options

1) Pneumatic vacuum feeder   2) Heat sealable tag device   3) Final product conveyer device(Customize)   4) Modification cutter tool

Video

Packing materials

Heat sealing filter paper : Single side heat-sealing ,16.5-20g/㎡ and 125mm width.

Cotton thread : The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.

Tag paper : The tag paper should be bleached paper for food industry specially, 70 g/㎡ .

Adhesive : The adhesive used on this machine is polyvinyl acetate emulsion. Its Brookfield viscosity should be 1600-2800 CP at 25℃ with adhesive.

Filter paper: 7500bags/kg

Heat sealable tag paper:6250tags/kg

Cotton thread: 20000teabags/Roll
