1. Double-row synchronous output, higher production efficiency

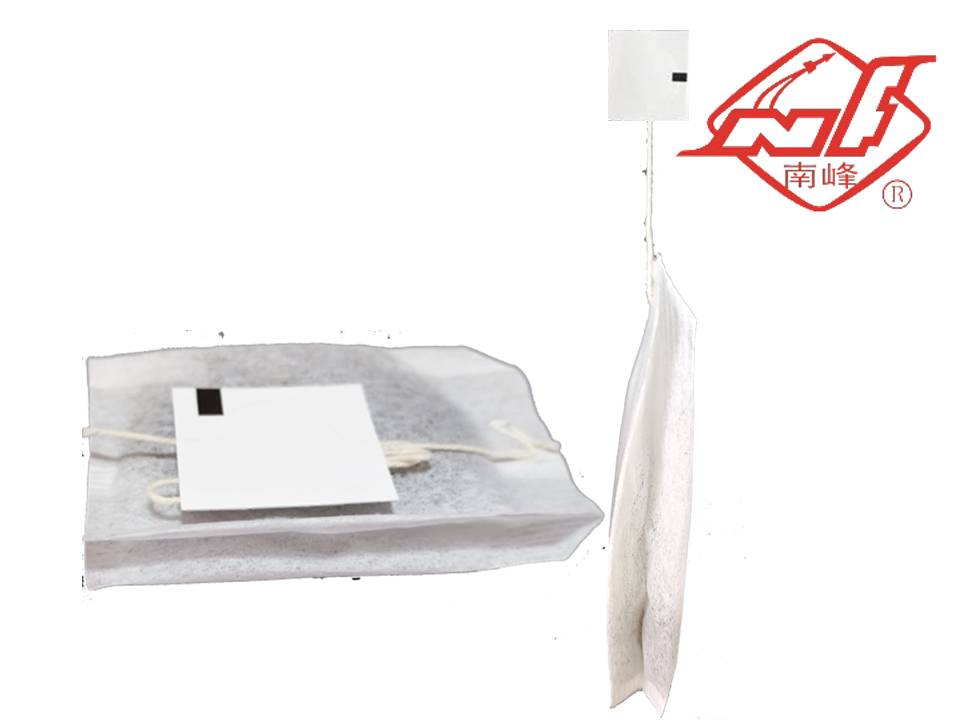

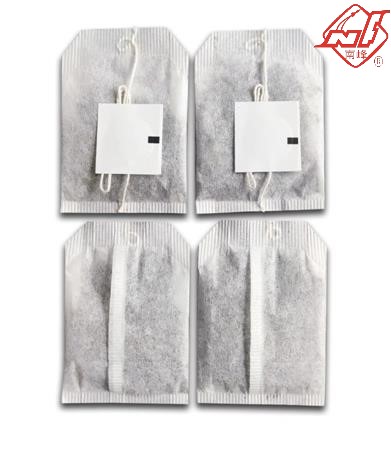

2. New designed bag: Back-seal, sides folding, chamfer cutting
3. Cotton thread is winded, its length is adjustable
4. Automatic heat-sealing for tag, filter paper and cotton thread
5. New drawer type double-position metering feeding
6. Active unwinding of packing materials, double-row slitting, automatic correction
7. Can customize different dimensions of tea bag and envelope bag
8. Can customize and expand the functions of envelope bag stacking and boxing,ect.
Machine Model | DXD01KM120 | ||
Machine name | high-speed tea bag packing machine | ||
Packed tea/herb | broken tea and other granular materials (20-40) meshes bulk non-viscidity granular or sheet materials | ||
Max. dosage | 6cm³±5% | 9cm³±5% | 12cm³±5% |
Tea bag dimensions | 40×60 mm | 45×65mm | 50×80mm |
Envelope bag dimensions | 70×80mm（customized） | 75×95mm（customized） | |
Tag dimensions | 20mm×24mm | ||
Cotton thread length | 155mm±5mm | ||
Max capacity (single row) | 120 bags per minute | ||
Max capacity (double row) | 240 bags per minute | ||
Power supply | 380V AC (can be customized according to customer requirements) | ||
Power | 10kW | ||
Compressed air supply | 6bar,400/min | ||
Other functions | Automatic alarm warning stop for materials shortage, malfunctions, etc. | ||
Heat sealing filter paper : Single side heat-sealing ,16.5-22g/㎡ ,width:232mm , 8100bags/kg
Label paper: Paper/plastic (PE) composite film, 150-180g/㎡, paper
thickness of 0.15-0.2mm, width:80mmThe paper can be printed according to
the user's needs.
Cotton thread: The thread should be original cotton thread with 3
strands of No.16 (20 in English System) thread wound into cone,
24500teabags/Roll
