Characteristics
1. PLC control, coordinated drive of multiple motors, safe, reliable, stable.
2. Sensors monitor the running situation; automatic alarm and shutdown while malfunctioning.
3. Machine’s frame is made of 304 stainless steel with polishing treatment on the surface, meet the GMP requirements.
4. Safety protection: short-circuit protection, overload protection, electric-leakage protection.
5. Touch screen display, simple operation, easy maintenance
Technical data
No. | Item | Pramameters | Remark | |
1 | Speed(bag/min) | 20-120 (depends on feeding materials and volume) | Single-pack/ multi-packs | |
2 | Materials | Granule, pill, powder, liquid (using different feeding systems) | Granular materials(5-30mm) | |
3 | Film width(mm) | 100-320mm | Can customize | |
4 | End bag size（mm） | Length | 50-190 | adjustable |
Width | 50-150 | Can be changed by replacing the forming device | ||
5 | Bag forming | Flat and intact, without any rolling or loose packaging, with good sealing and moisture-proof performance | ||
6 | Edge misalignment | ±0.5mm | ||
7 | Packing film | PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP etc. | ||
8 | Electrical power（kW） | ≤5 | ||
9 | Power supply（kW） | 220V 50Hz | ||
10 | Noise | ≤ 80dB (A) | ||
Optional devices

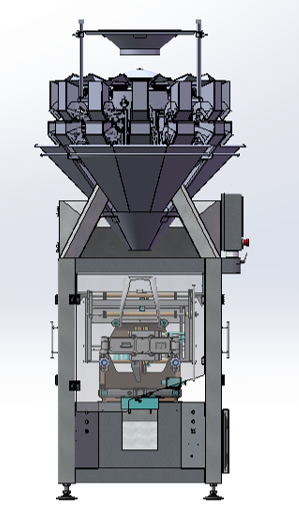

1. Multi head combination weighing system
2. Pneumatic vacuum feeder
3. Date coding system
4. Checkweigher
