Characteristics

♦ Patent for heat sealable tag system (No glue).

♦ Provide servo control for traction of envelope.

♦ High performance of sealing structure, Air tightness well, the bags are prepared in a continuous process from a roll of heat sealable hermetic material. After placing into each bag the programmed amount of teabags, they are sealed and cut for delivery.

♦ Automatic photoelectric marks tracking to assure proper trademarks location.

♦ A sensor monitor for jam teabag. Alarm stop when it detects a shortage of materials.

♦ Stainless steel body of forming device, installing and removing within short time.

♦ Various heat sealable laminated materials (Plastic / P.E, Plastic / Foil / P.E).

Options

1) Pneumatic vacuum feeder

2) Heat sealable tag device

3) Final product conveyer device(Customize)

Technical data

Video

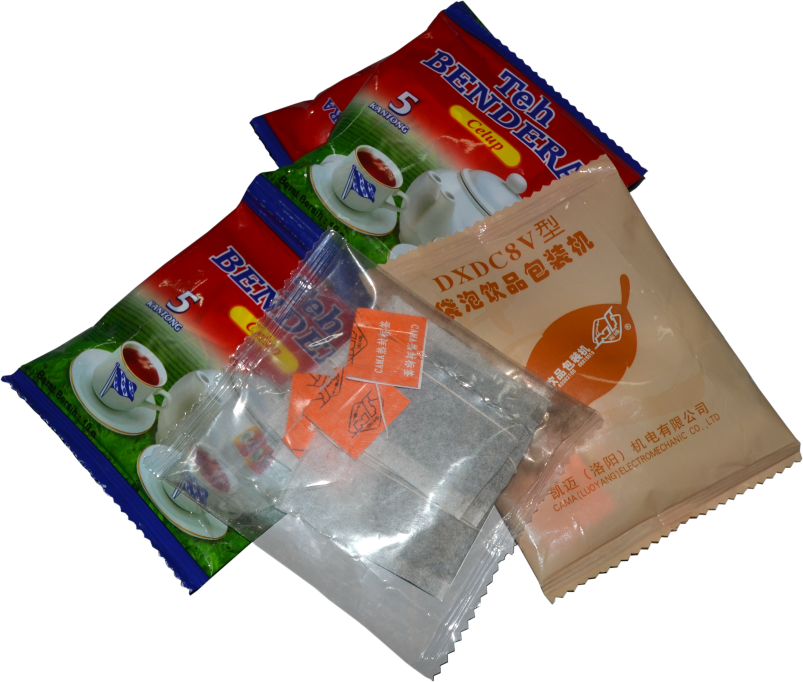

Packing materials

Heat sealing filter paper : Single side heat-sealing ,16.5-21g/㎡ ,width:125mm .

Various heat sealable laminated materials : Plastic / Foil / P.E, Paper / P.E, Paper / Foil / P.E, Plastic / P.E.

Cotton thread : The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.

Tag paper : The tag paper should be coatched paper for food industry specially.High temperature ink print.

Filter paper : 7500bags/kg

Heat sealable tag : 6250 tags/kg

Cotton thread : 20000 bags/Spool

Envelope material : 555 bags/kg
